Discarding of Steel Wire Ropes
Regular inspection of steel wire ropes is essential due to the wear they experience during use.
Daily Visual Inspection
- Observe at least the intended working section of the rope for the day to detect any signs of mechanical damage or deterioration.
- Pay attention to attachment points on the crane, ensure proper spooling, and check for smooth running over sheaves.
- Report any noticeable changes, and expert inspection is necessary for any identified damage.
Periodic Inspection
- Conduct a thorough inspection of steel wire ropes at least every 12 months, or more frequently as required by local legislation, by a competent person.
- Maintain records of these examinations.
- Follow ISO 4309 for winches and cranes, ISO 4344 for elevators, and EN 12927 for cableway installations designed for carrying persons.
Inspection Focus
- Pay special attention to parts of the wire exposed to wear and damage.
- Common visible signs of deterioration include wear, broken wires, distortion, and corrosion.
- Wear is normal, but correct rope construction and lubrication help mitigate it.
- Broken wires towards the end of a rope's life may indicate bending fatigue and wear.
- Distortions are often the result of mechanical damage, impacting wire rope strength.
- Corrosion signals insufficient lubrication, and inner corrosion may occur in inadequate environments.

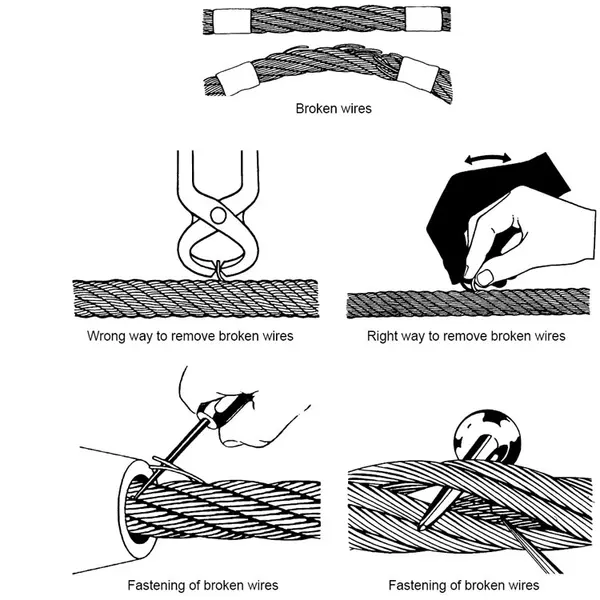

- Removal of individual broken wires should be done by bending them close to the inside of the strand to reduce the risk of protruding wire ends.
![Image](/sites/certex-no/knowhow/steel-wire-rope/43992/image-thumb__43992__areaImage/discard_broken-wires.444b0d99.png)
Warning! Do not cut the wire; bend it until it breaks close to the inside of the strand to minimize the risk of protruding wire ends.
Steel Wire Rope Discards
- Discard steel wire ropes following current standards for the equipment or manufacturer's recommendations.
- Determination of disposal should be carried out by a competent person knowledgeable about applicable norms and standards.
Warning! Inadequate inspection or disposal can lead to serious injuries.
