Lifting beam rental
Our department in Bergen has lifting beams that can be adjusted for your needs.
Our packages contains the following WLL variants:
- 30 - 80 tons (30-200-11396)
- 50 - 105 tons (30-200-11397)
- 150 - 245 tons (30-200-11398)
WLL 30-80 tons (11396)
Original length: 4.5 meters.
The beam is load tested at 4.5 meters at 80 tons and has a ILO Form 3 certificate.
| Type | Pieces | Drawing/ID | Weight pr unit |
|---|---|---|---|
| 560 mm section | 2 pieces | 30-200-10807 | 102 kgs |
| 810 mm section | 2 pieces | 30-200-10873 | 134 kgs |
| 1 mtr section | 1 piece | 30-200-10809 | 158 kgs |
| 2 mtrs section | 1 piece | 30-200-10810 | 285 kgs |
| 3 mtrs section | 1 piece | 30-200-10808 | 413 kgs |
| Jaws 540 mm | 2 pieces | 30-200-10944 | 43 kgs |
| End link type C | 2 pieces | 30-200-10945 | 30 kgs |
| End link type D | 2 pieces | 30-200-10946 | 44 kgs |

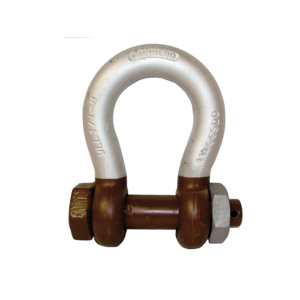

| Shackles 856 35 tonn | 4 pieces | 3265082 | 21 kgs |
WLL 50-105 tons (11397)
Original length: 8 meters.
The beam is load tested at 8 meters at 114 tons and has a ILO Form 3 certificate.
| Type | Pieces | Drawing/ID | Weight per unit |
|---|---|---|---|
| 790 mm section | 2 pieces. | 30-200-10802 | 156 kgs |
| 1040 mm section | 2 pieces | 30-200-10880 | 192 kgs |
| 2 mtr section | 1 piece | 30-200-10805 | 326 kgs |
| 5 mtr section | 1 piece | 30-200-10806 | 759 kgs |
| Endegafler 570 mm | 2 pieces | 30-200-10941 | 73 kgs |
| End link type C | 2 pieces | 30-200-10942 | 42 kgs |
| End link type D | 2 pieces | 30-200-10943 | 54 kgs |
| Shackles 856 55 tons | 4 pieces | 3265085 | 39 kgs |
WLL 150-245 tons (11398)
Original length: 5.5 mtr.
The beam is load tested at 5.5 meters at 270 tons and has a ILO Form 3 certificate.
| Type | Pieces | Drawing/ID | Weight per unit |
|---|---|---|---|
| 920 mm section | 2 pieces | 30-200-10673 | 272 kgs |
| 1 170 mm section | 2 pieces | 30-200-10861 | 324 kgs |
| 2 mtrs section | 1 piece | 30-200-10677 | 473 kgs |
| Jaws 755 mm | 2 pieces | 30-200-10932 | 179 kgs |
| End link type C | 2 pieces | 30-200-10933 | 167 kgs |

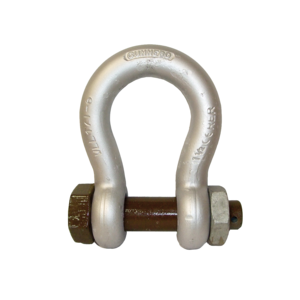

| Shackles 855 150 tonn | 4 pieces | N/A | 160 kgs |
