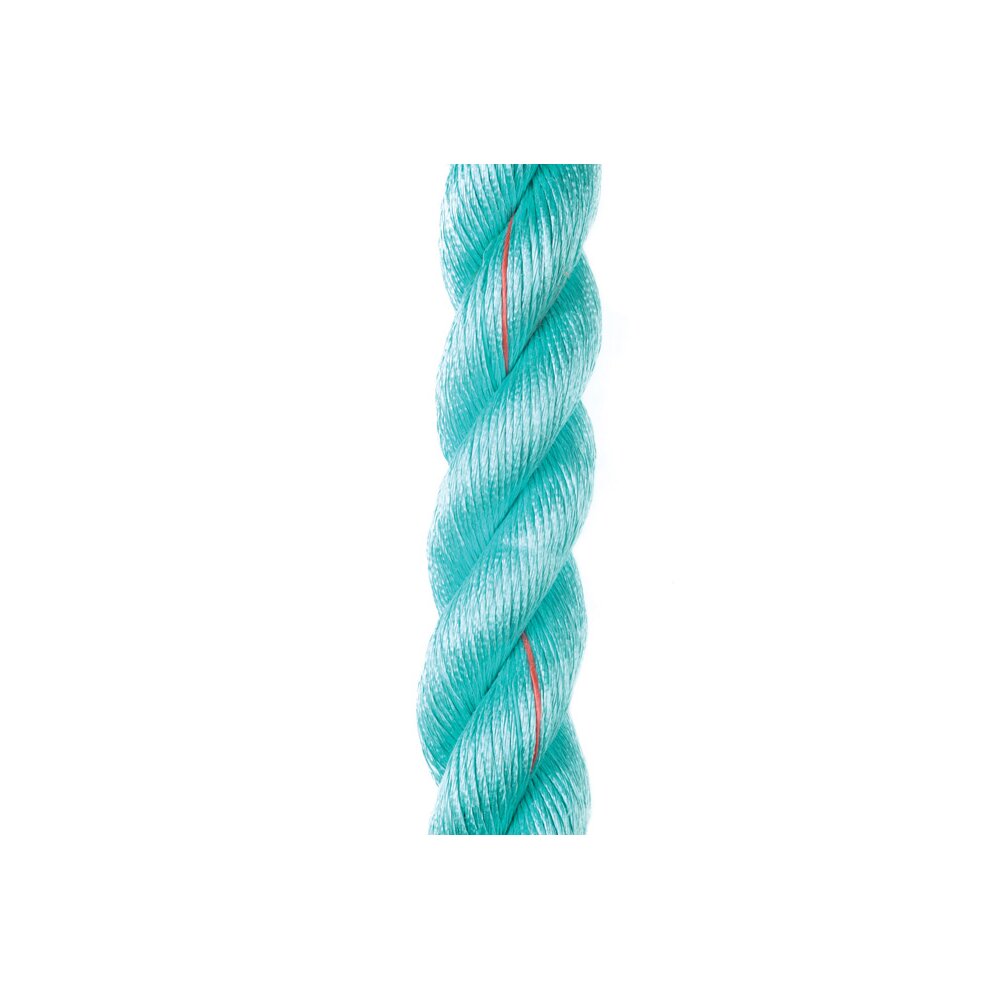

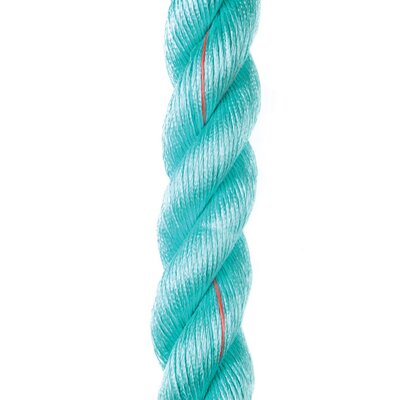

Megaline, 3-Strand Twisted

Spliced fibre rope of polypropylene and polyeten for all different kinds of applications like mooring systems, towing ropes, lifting slings, rope for the fish farming industry, cargo nets, rope ladders and more. The structure of the fibre rope makes it non sliding in knots and splices. It should be

Show more

Product number:

Spliced fibre rope of polypropylene and polyeten for all different kinds of applications like mooring systems, towing ropes, lifting slings, rope for the fish farming industry, cargo nets, rope ladders and more. The structure of the fibre rope makes it non sliding in knots and splices. It should be stored away from direct sunlight.

Design: 3-strand twisted.

Specific gravity: 0,94 (floats).
Melting point: 165°C.
Elongation: At 25% of MBL = 6,0%. At 50% of MBL = 11,5%.

  • Material: A thermomecanical split fibre mix of polypropylene(PP) and polyeten(PE). The rope doesn't absorb water, and is resistant to rot, acid and alkalies. It has a high breaking force and floats.
  • Finish: Green.

Coil 220 m

Art.nr
Diam.
Minimum Breaking Load

Weight


mm
kN
tons
kg/m
kg/220m
12.03MEL320C22
32
164,8
16,8
0,440
97,0
12.03MEL360C22
36
202,1
20,6
0,558
122,7
12.03MEL400C22
40
252,1
25,7
0,689
151,5
12.03MEL480C22
48
359,0
36,6
0,988
217,4
12.03MEL560C22
56
477,7
48,7
1,349
296,8
12.03MEL640C22
64
613,1
62,5
1,767
388,7
12.03MEL720C22
72
764,2 77,9
2,223
489,1



Bobbin

Art.nr
Diam.
Minimum Breaking Load

Length
Weight


mm
kN
tons
m
kg/m
kg/bobbin
12.03MEL040SPL400
4
3,3
0,34
400
0,008
3,2
12.03MEL040SPL1000
4
3,3
0,34
1000
0,008
8,0
12.03MEL060SPL600
6
6,7
0,68
600
0,015
9,1
12.03MEL080SPL350
8
11,8
1,2
300
0,027

8,3

12.03MEL100SPL200
10
17,7
1,8
200
0,042
8,4
12.03MEL120SPL135
12
26,5
2,7
150
0,059
8,8
12.03MEL140SPL130
14
35,3
3,6
130
0,081
10,5
12.03MEL160SPL80
16
44,1
4,5
80
0,104
8,3



Coil 30 m

Art.no
Diam.
Minimum Breaking Load

Weight


mm
kN
tons
kg/m
kg/30m
12.03MEL040M30
4
3,3
0,34
0,008
0,24
12.03MEL060M30
6
6,7
0,68
0,015
0,46
12.03MEL080M30
8
11,8
1,2
0,027
0,83
12.03MEL100M30
10
17,7
1,8
0,042
1,25
12.03MEL120M30
12
26,5
2,7
0,059
1,77
12.03MEL140M30
14
35,3
3,6
0,081
2,42
