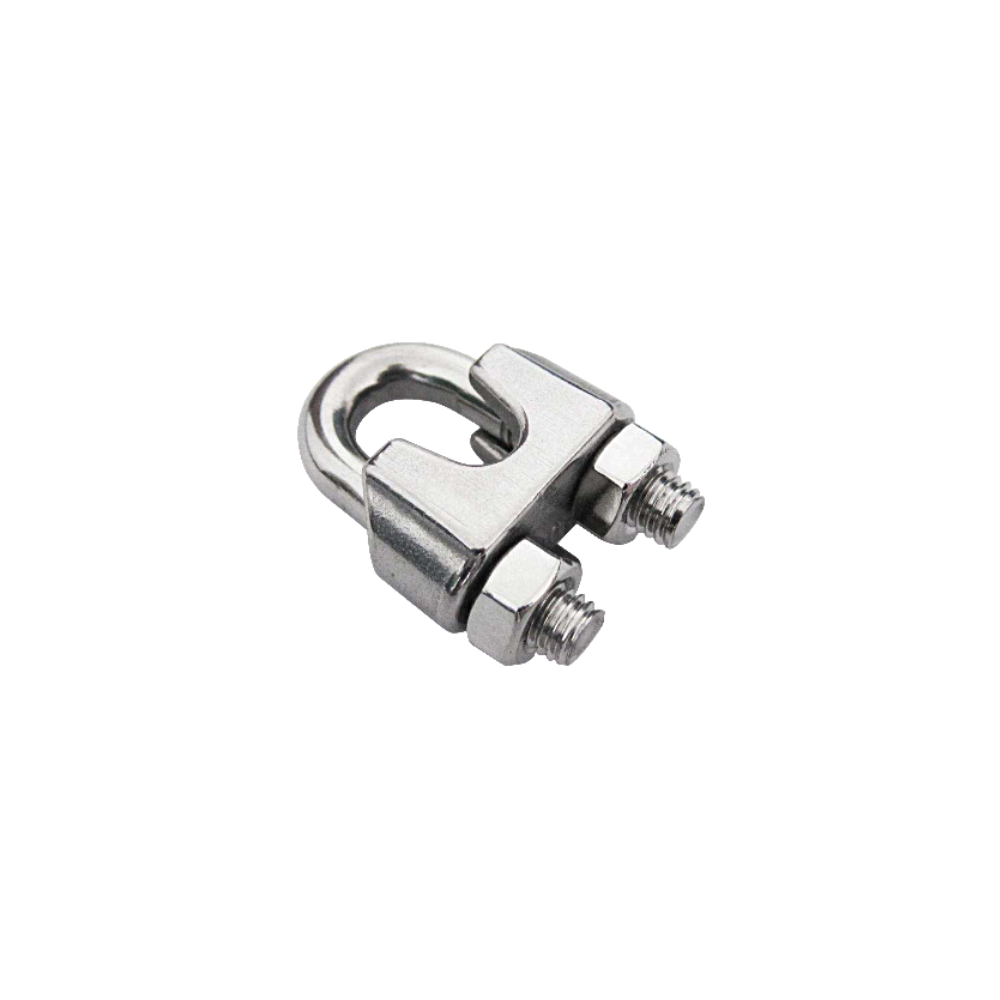

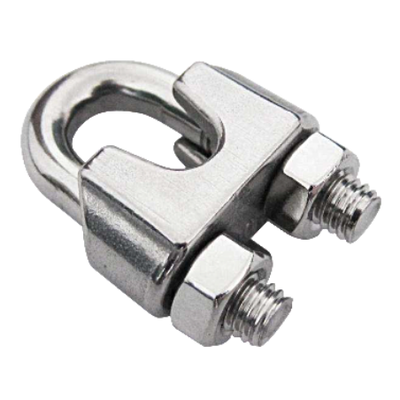

U-bolt wire rope clips are mechanical fasteners used to secure the ends of wire ropes or cables. They consist of a U-shaped bolt, a saddle, and two nuts. These clips are particularly useful for:
- Securing Wire Ropes: They are used to create loops at the ends of wire ropes, which can be attached to hooks, shackles, or other anchor points.
- Temporary Anchor Points: They are ideal for temporary installations where wire ropes need to be fastened and released quickly.
- Repairs: They can be used to repair or splice wire ropes by securing two ends together.
- Construction and Engineering: Commonly used in the construction and engineering industries to secure lifting equipment and rigging.
- Marine Applications: Often used in marine environments to secure ropes and rigging on boats and ships.
These clips are easy to install and provide a reliable method for securing wire ropes in various applications.
- Material: Stainless steel AISI 316
- Marking: According to standard, Recommended rope size in mm
- Finish: Polished surface
- Standard: DIN 741

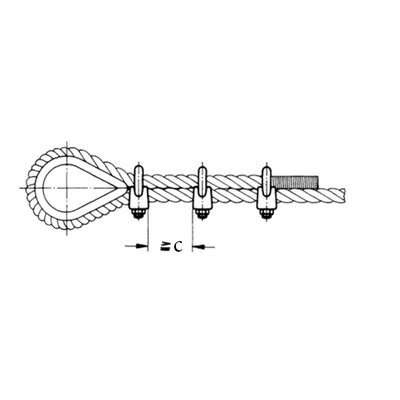

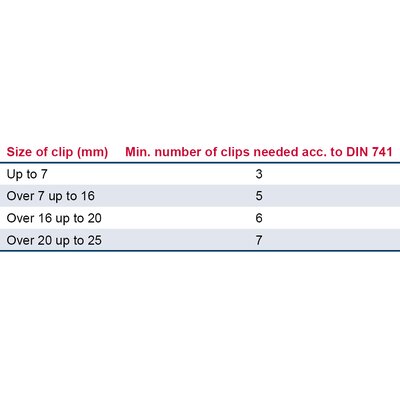

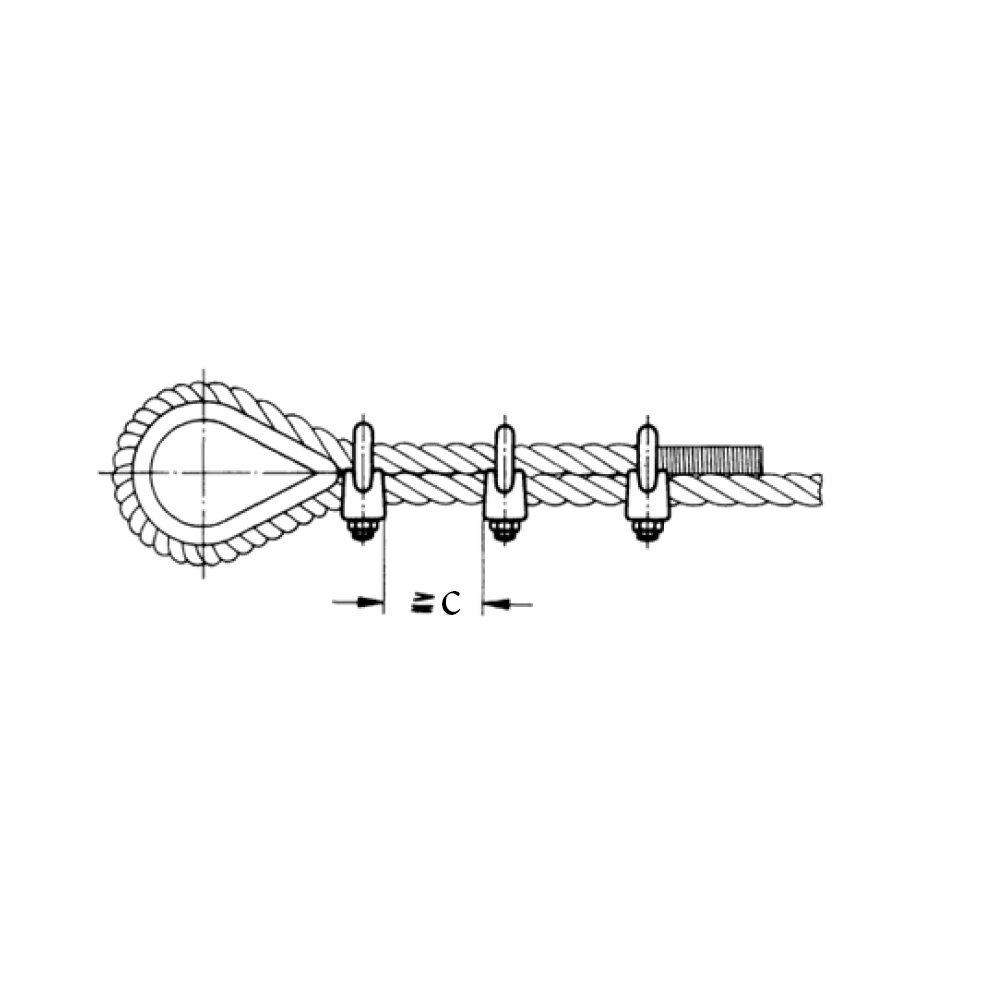

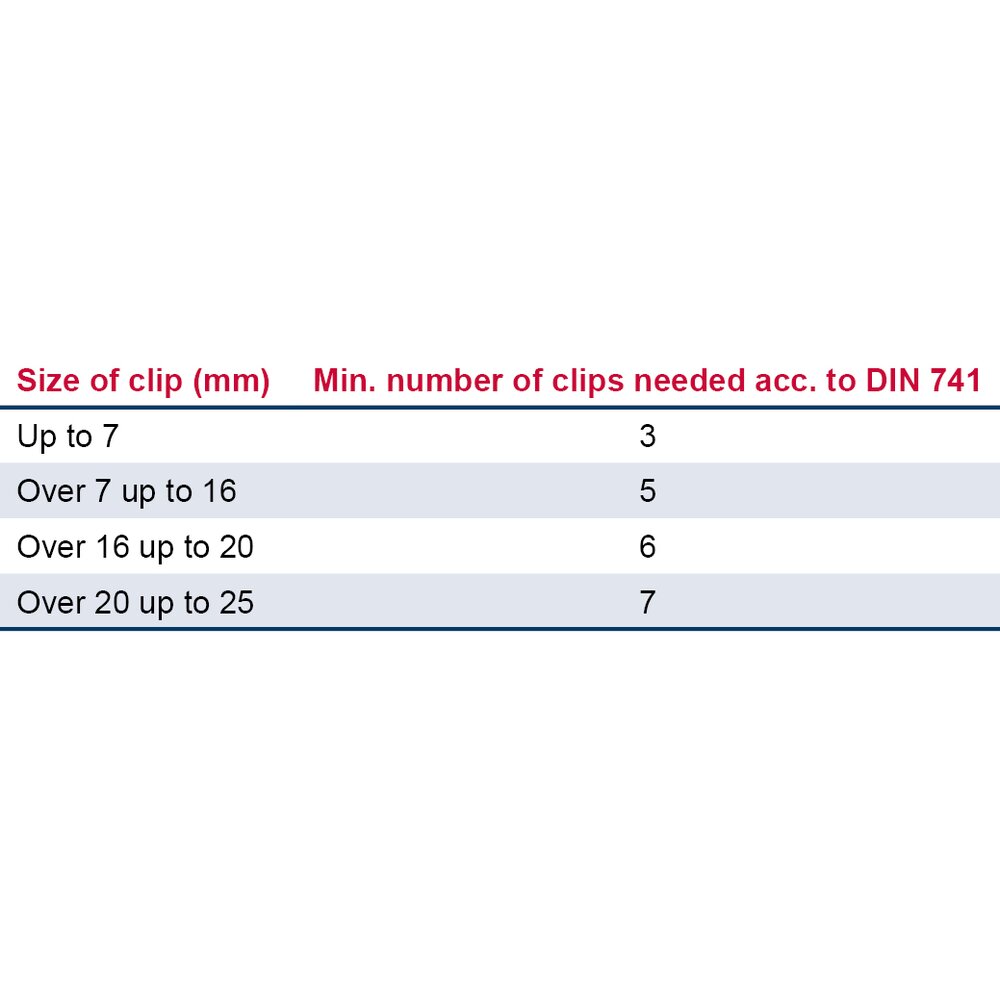

- Note: Follow the fitting instruction of wire rope clip drawing
- Warning: Not for lifting!
